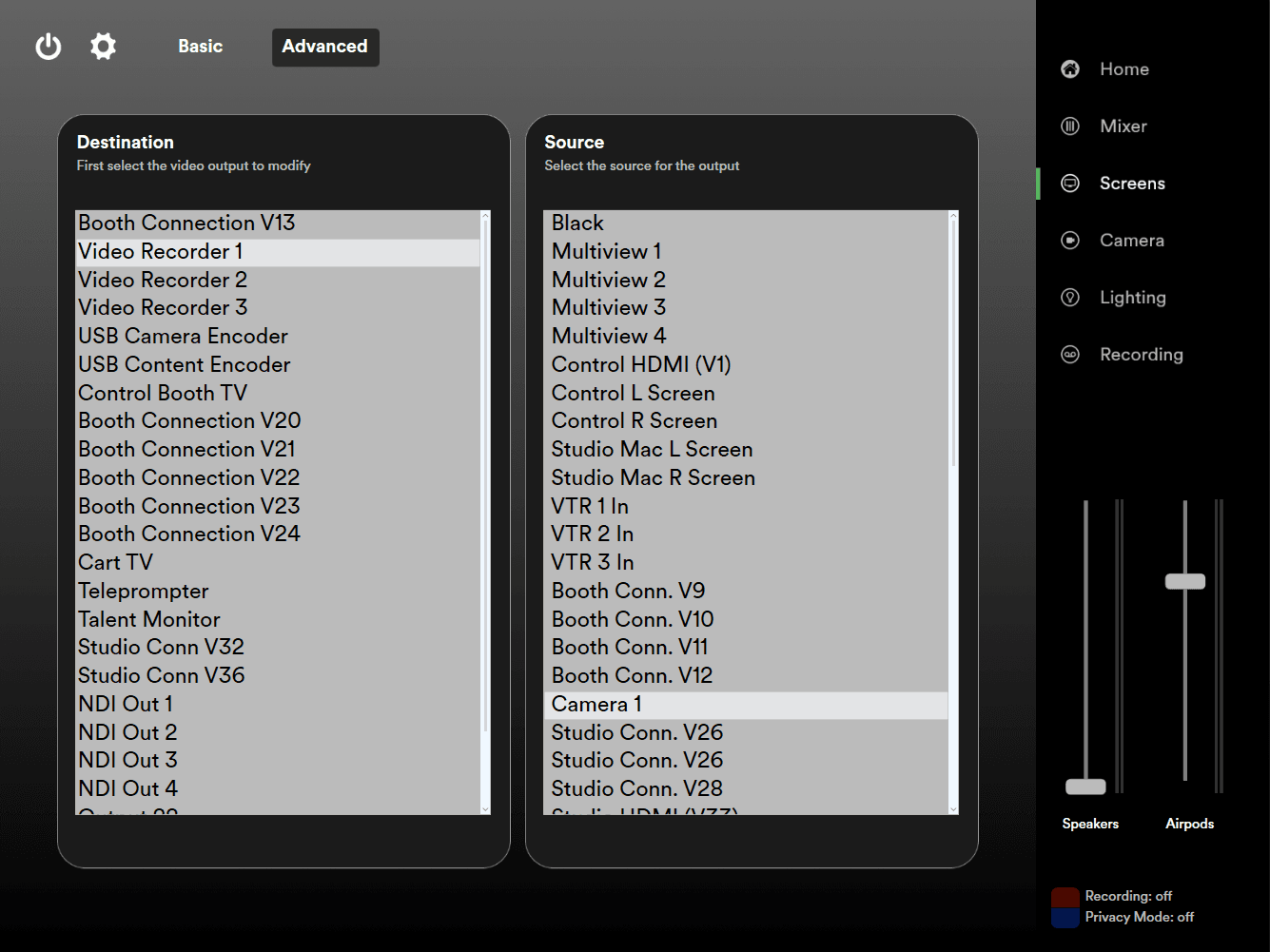

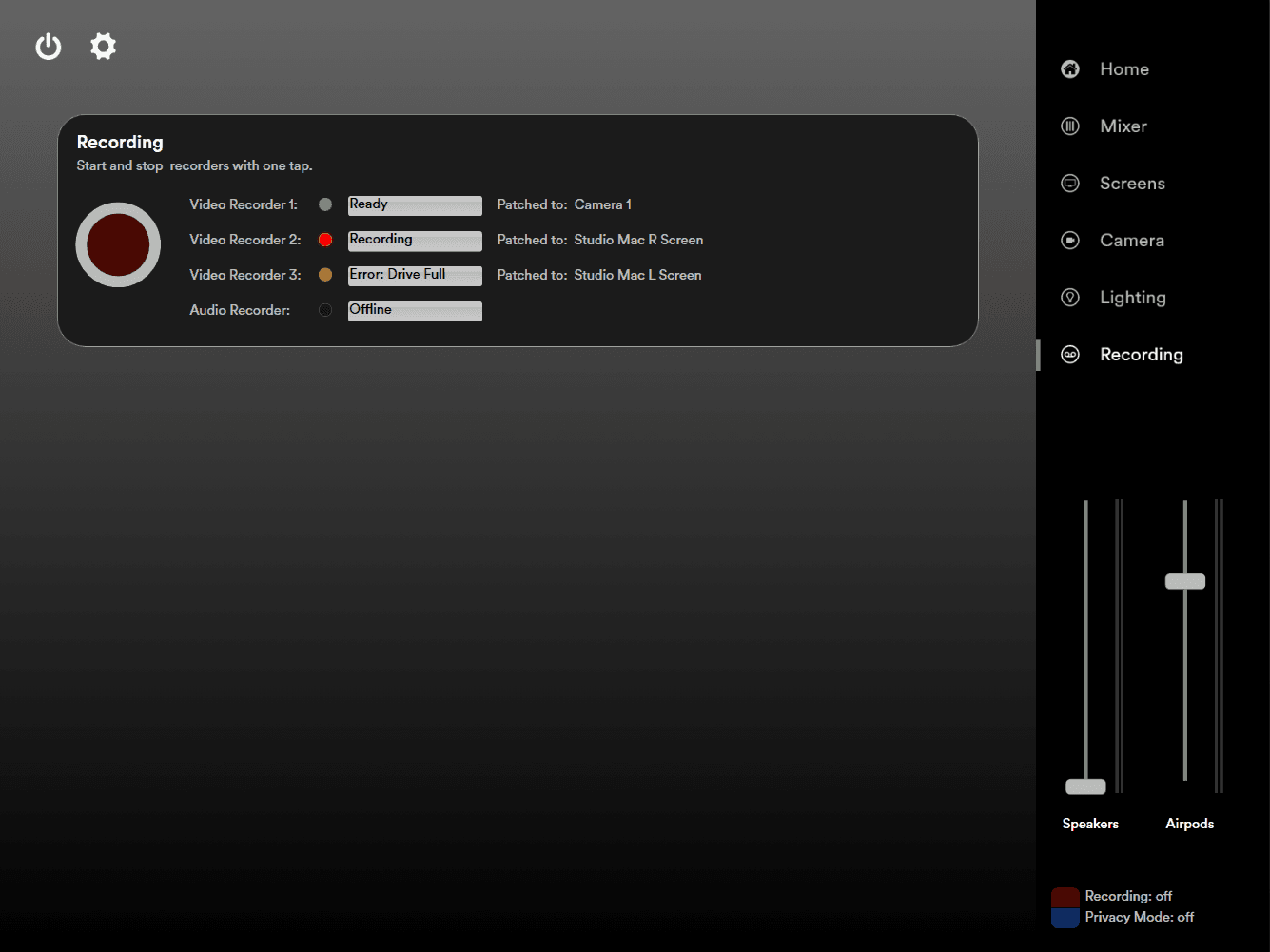

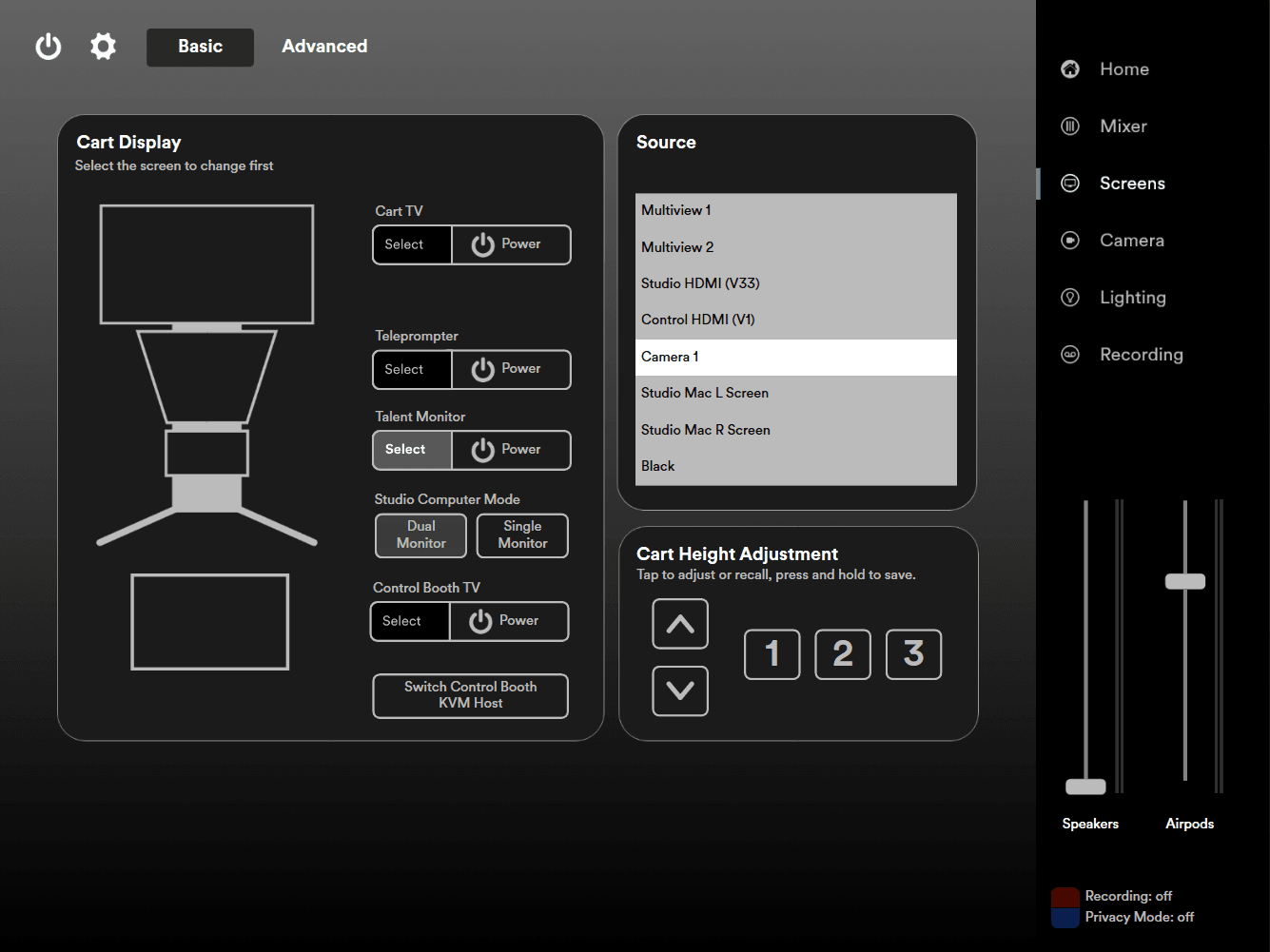

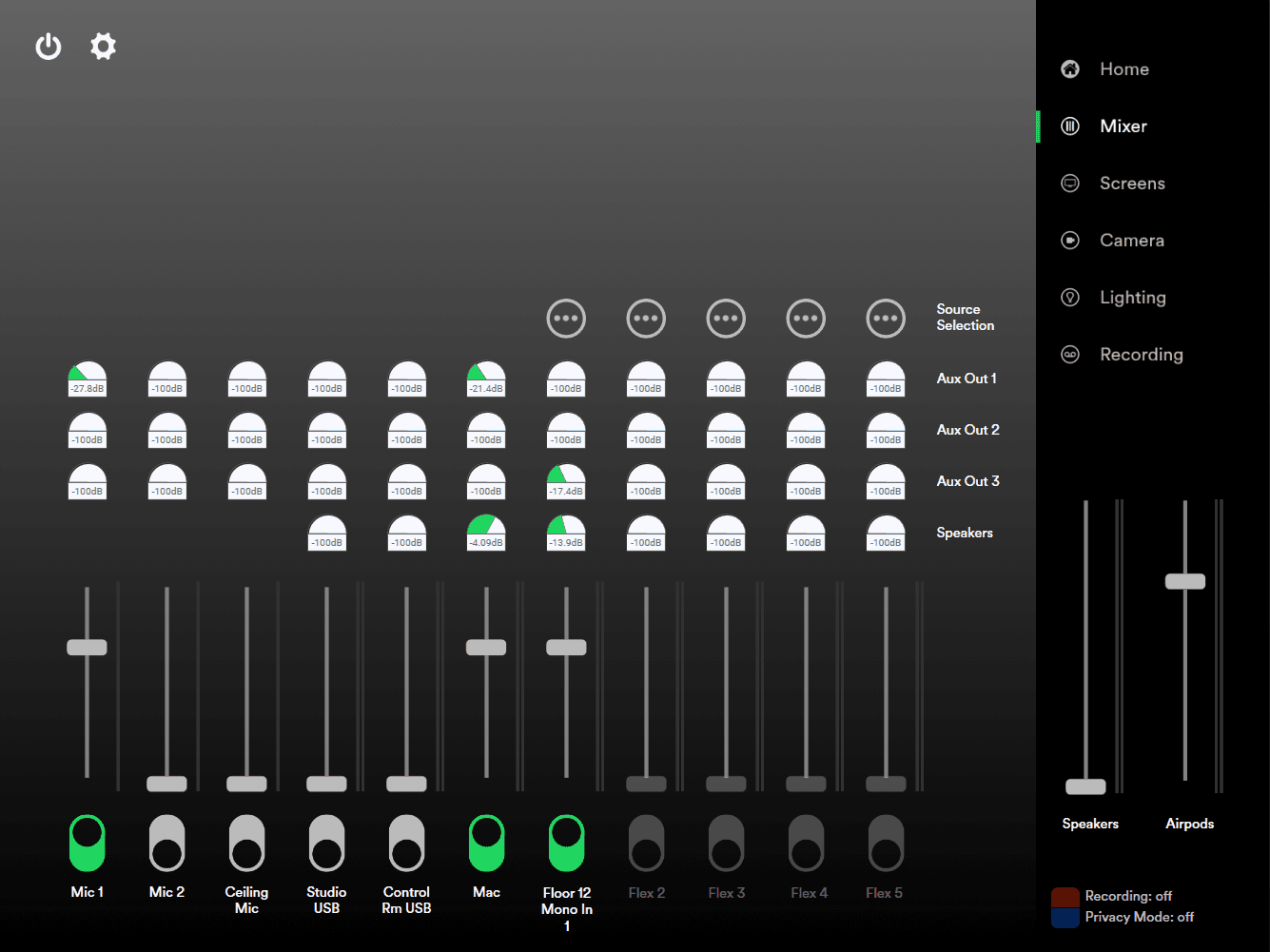

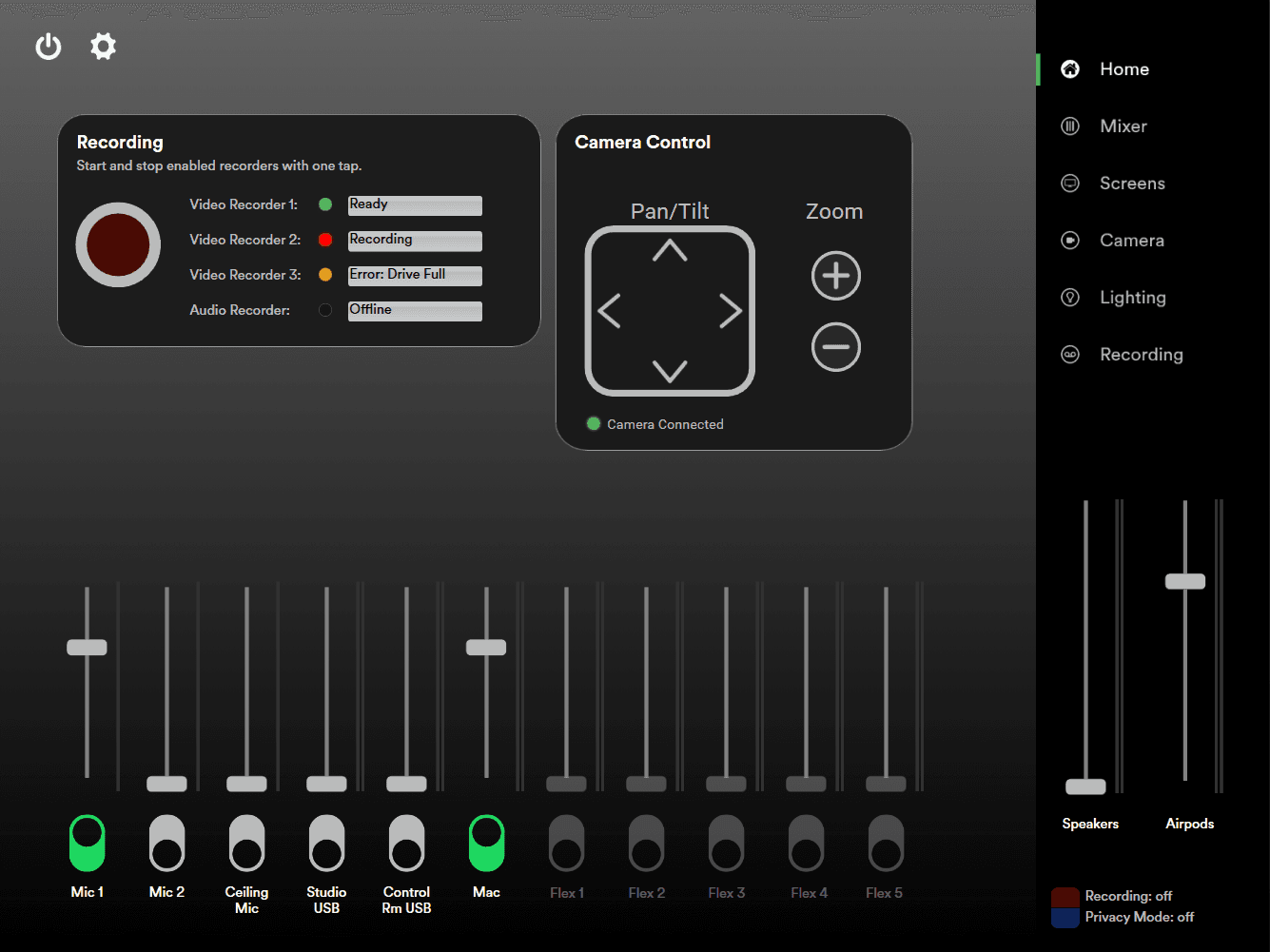

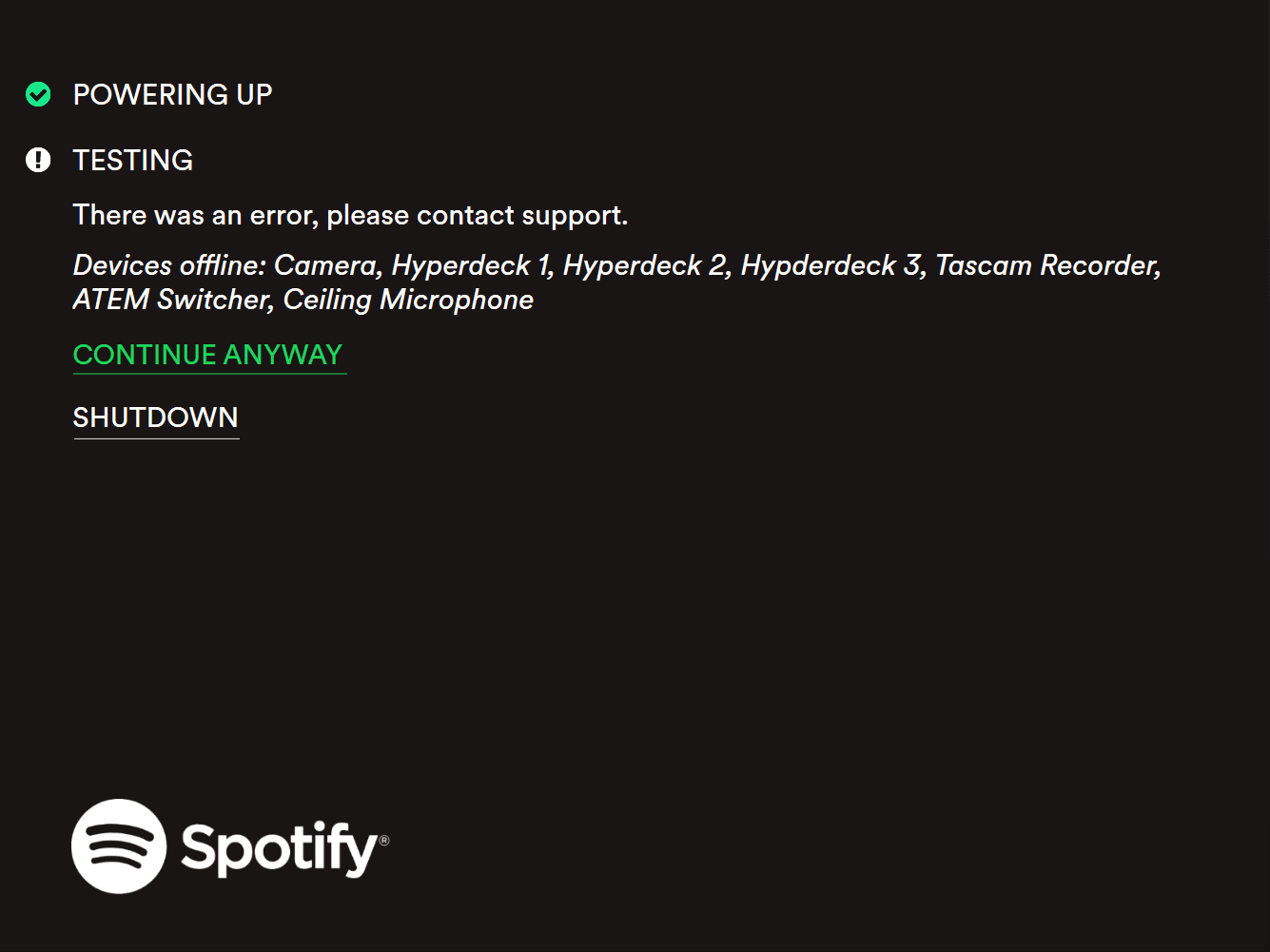

Broadcast Studio

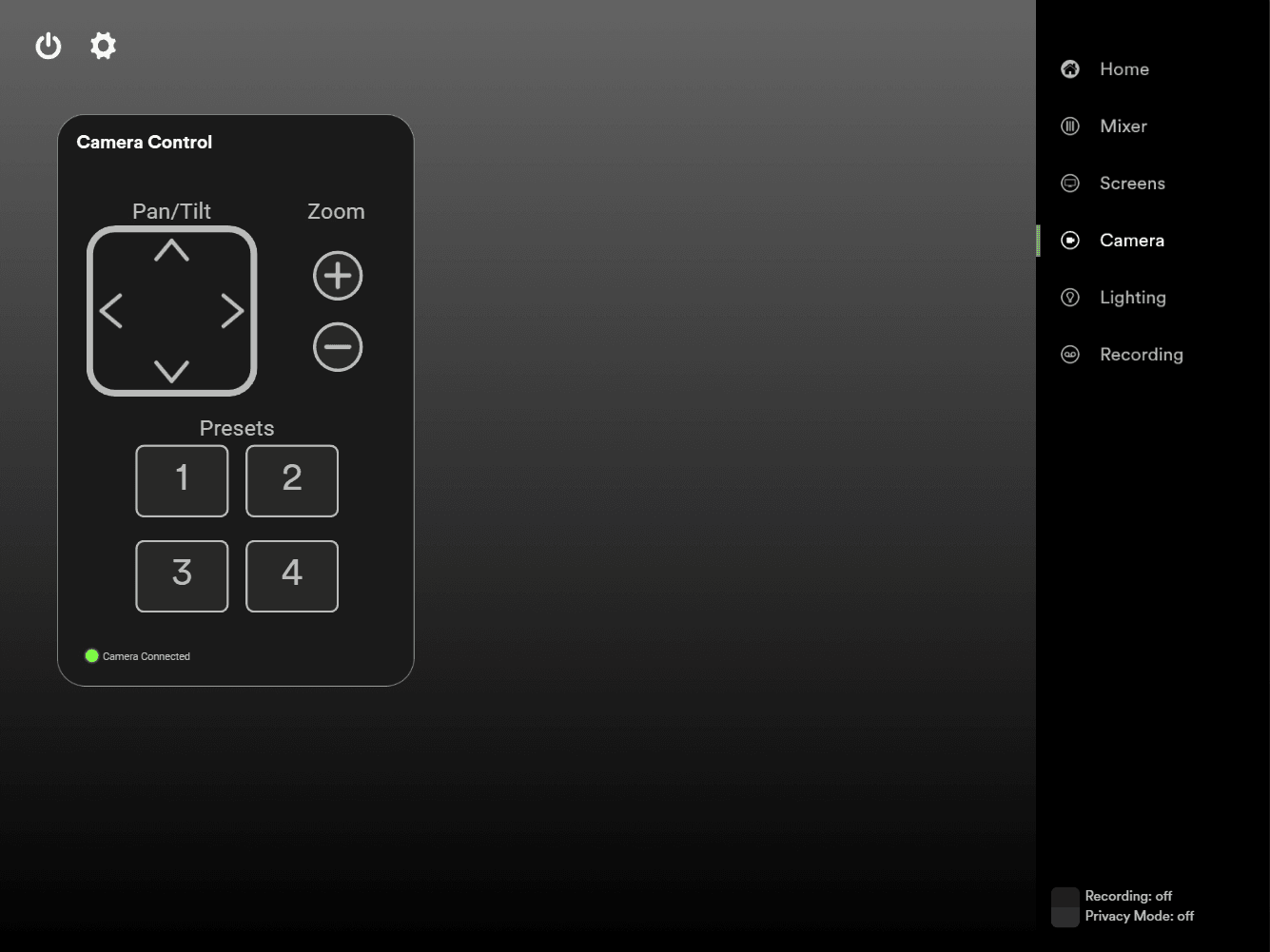

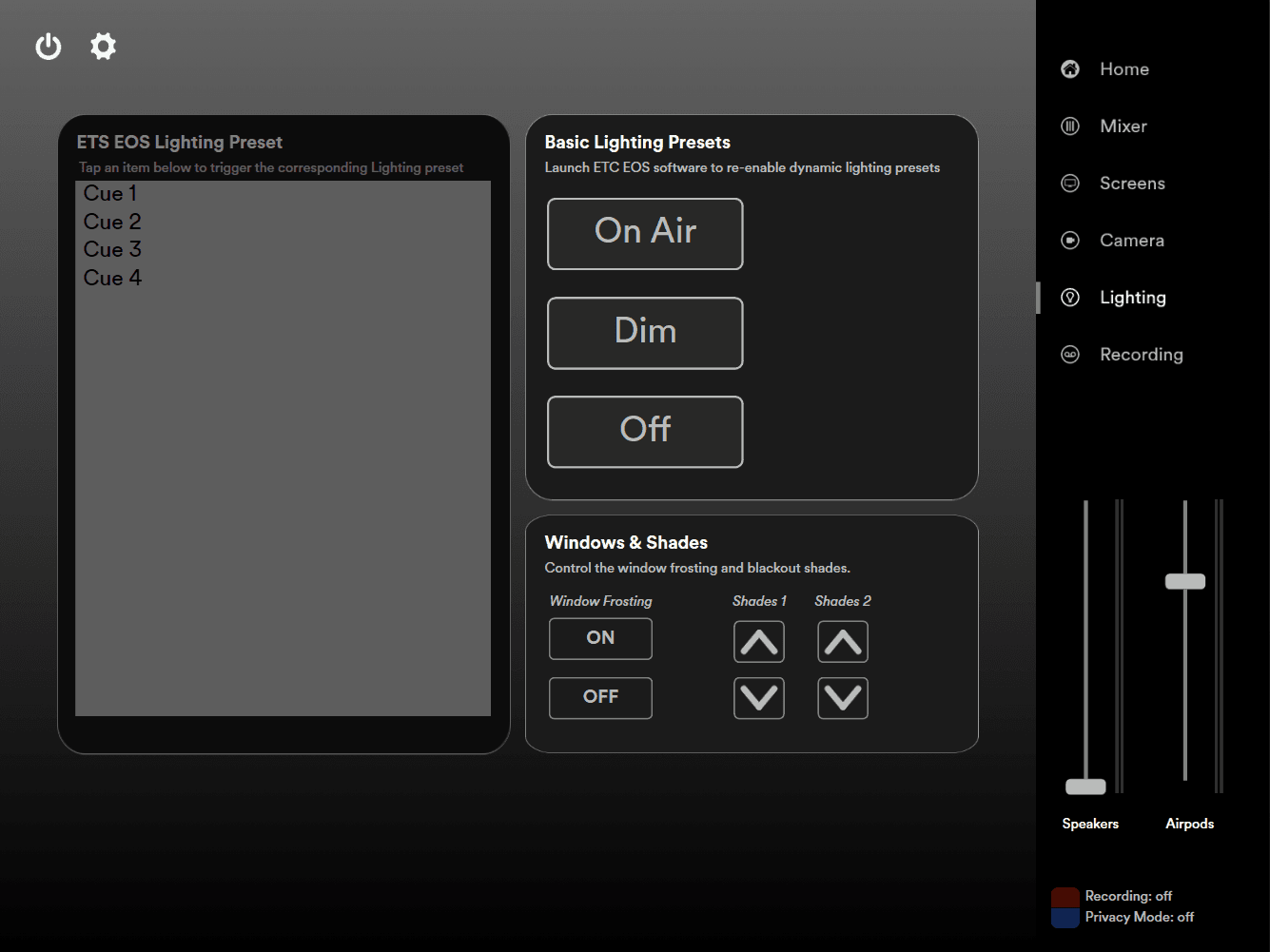

Control and DSP programming for a fully featured broadcast studio that includes integrated lighting, broadcast camera control, a full embedded audio mixer, and plenty of distributed inputs and outputs on both the audio and video side. The UCI was designed and scoped in Adobe Xd and then implemented pixel for pixel in Q-SYS, using advanced layering, image buttons, a custom assets.
Q-SYS Core 510i
Broadcast / Live Production
iPad, I/O Flex, Panasonic Cameras, Blackmagic Hyperdeck, Tascam Audio Recorder, Shure MXA Mic, ETC EOS Lighting (MacOS Instance), Global Cache IP2IR

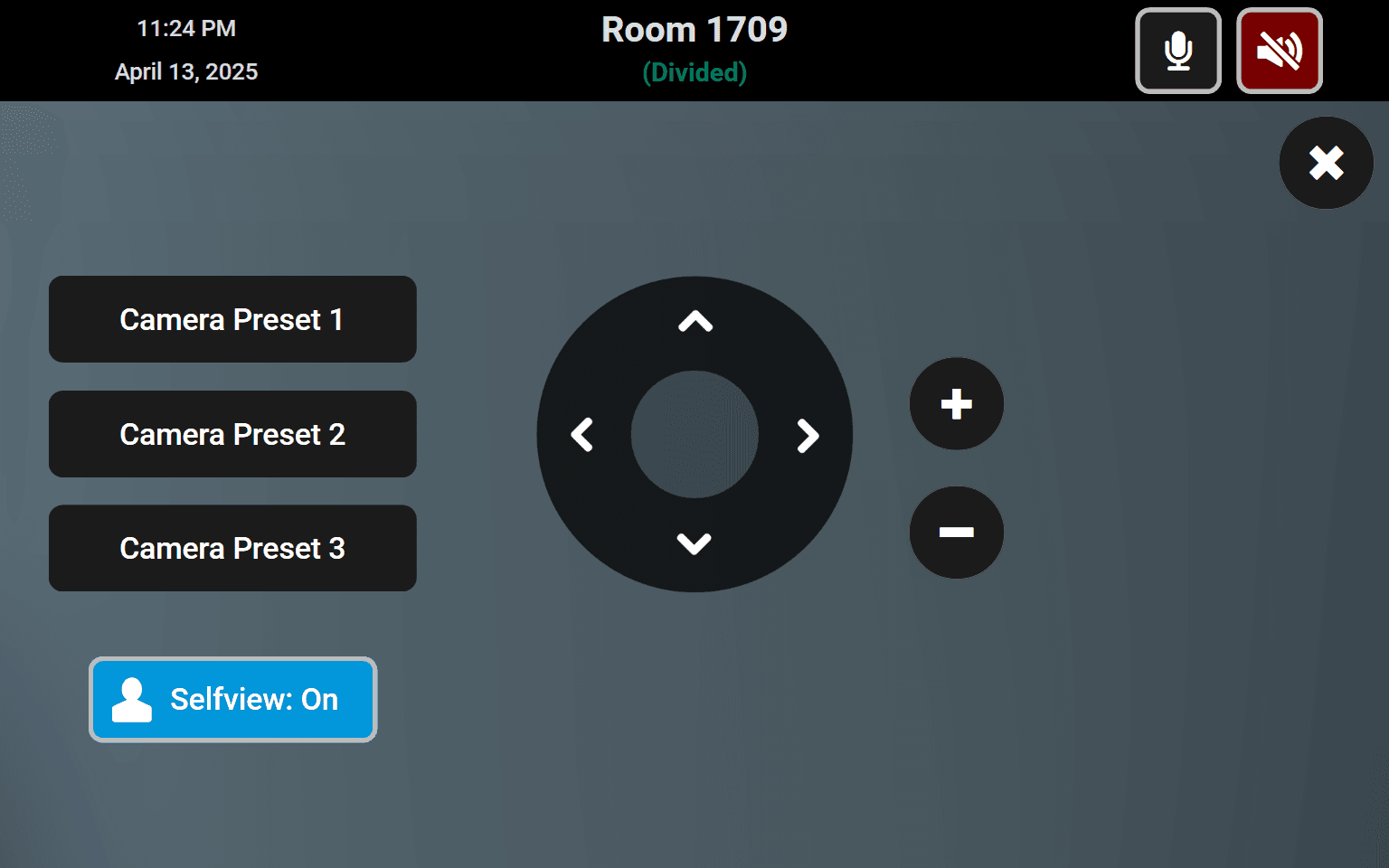

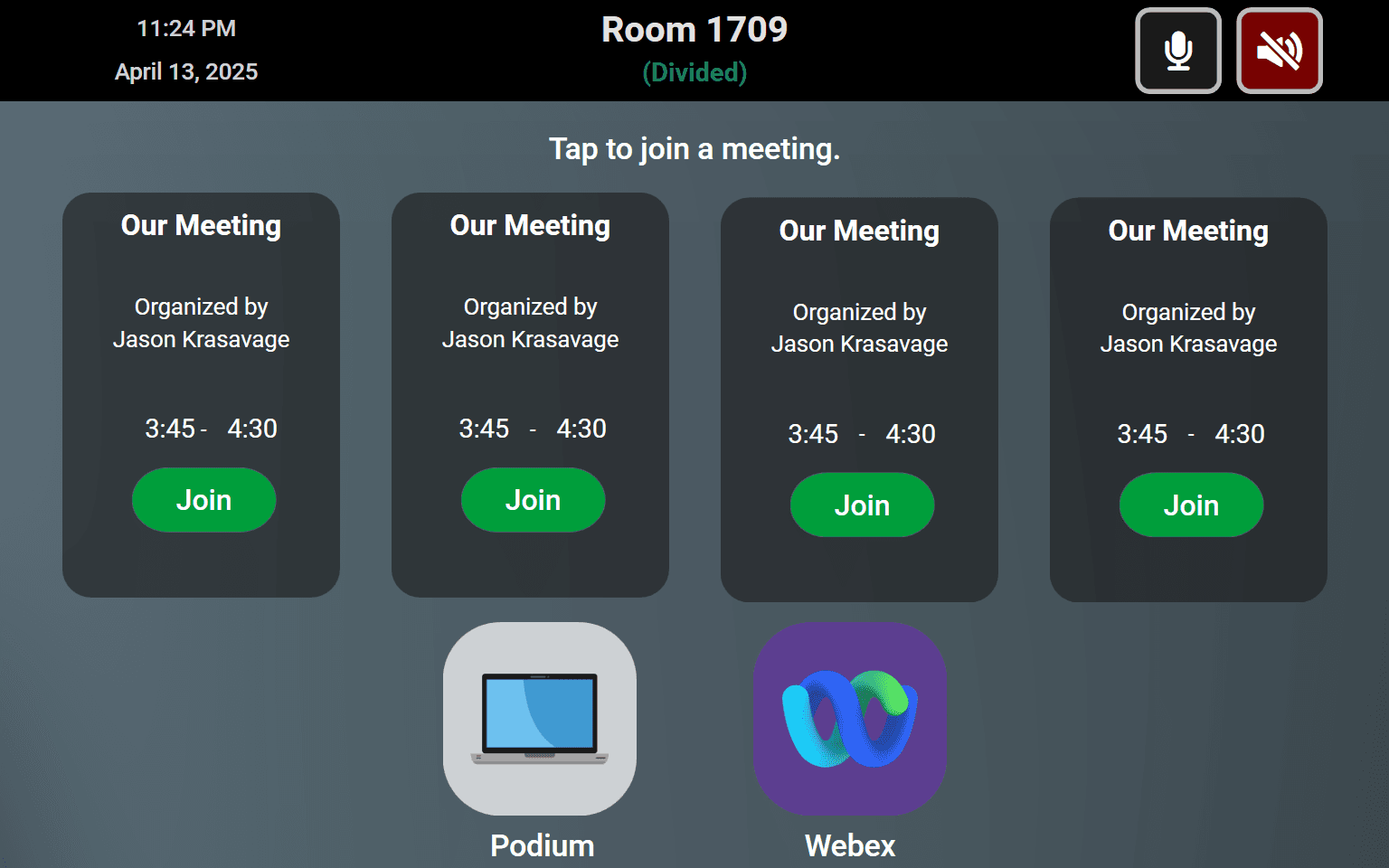

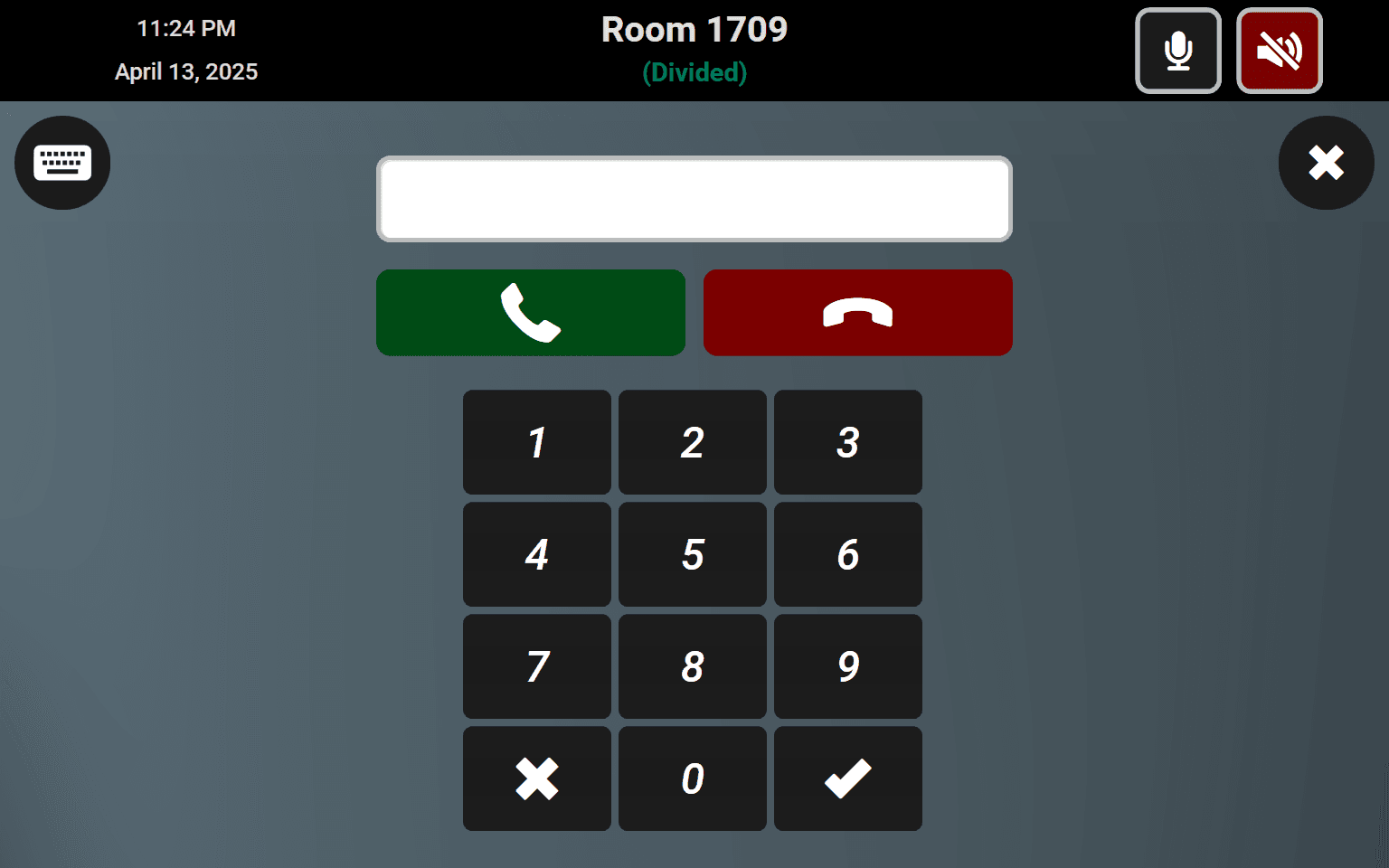

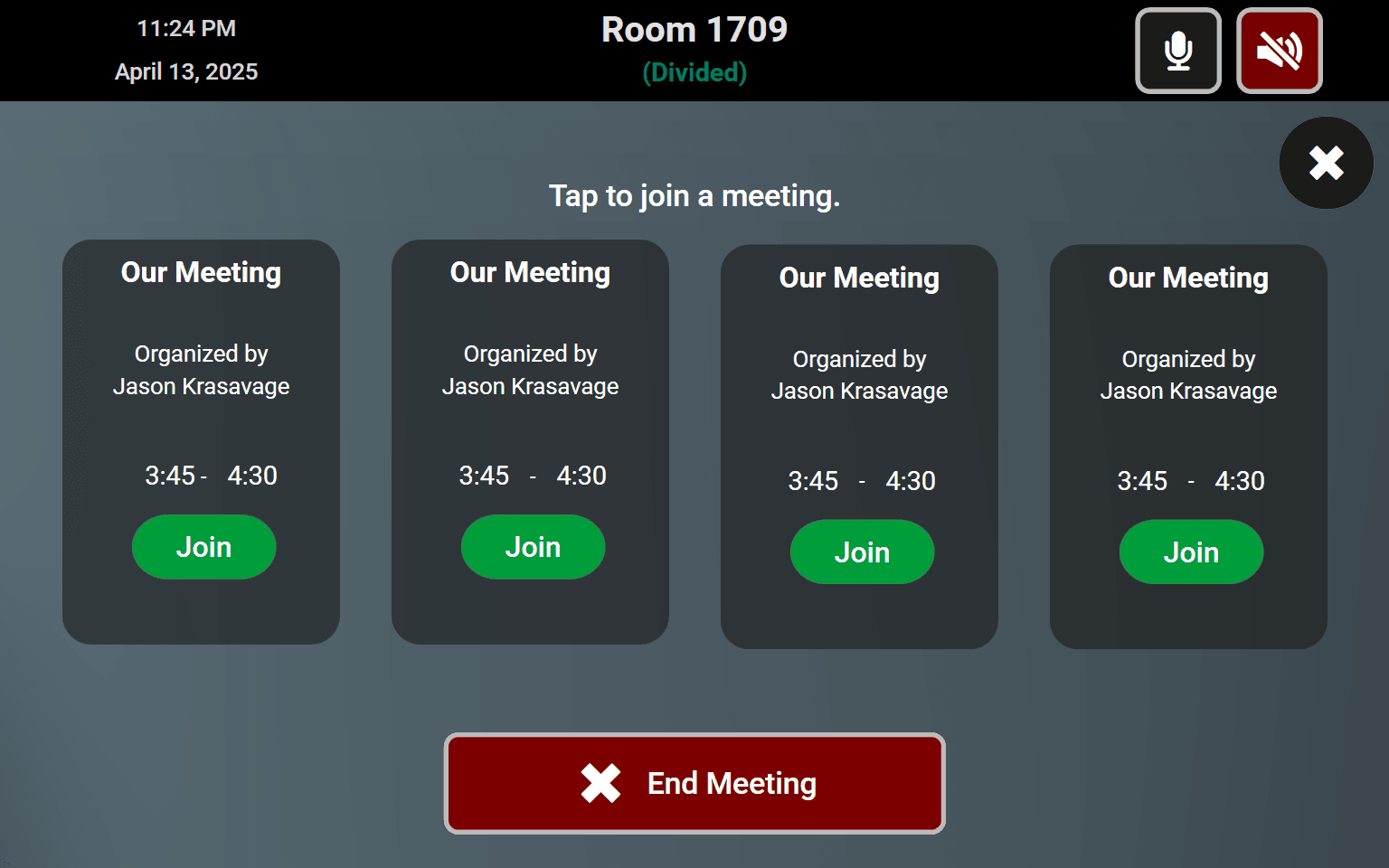

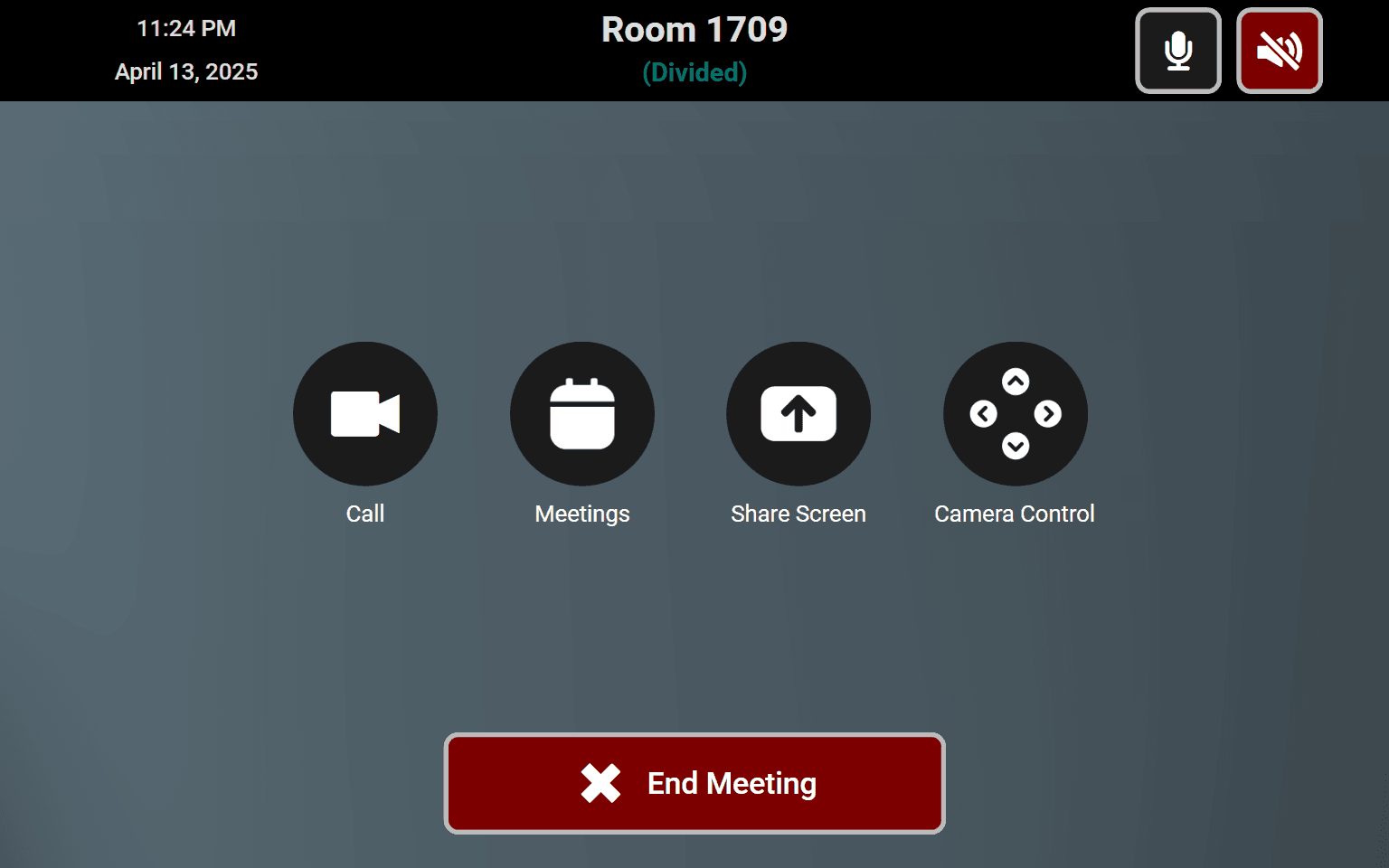

Choctaw Nation of Oklahoma Headquarters

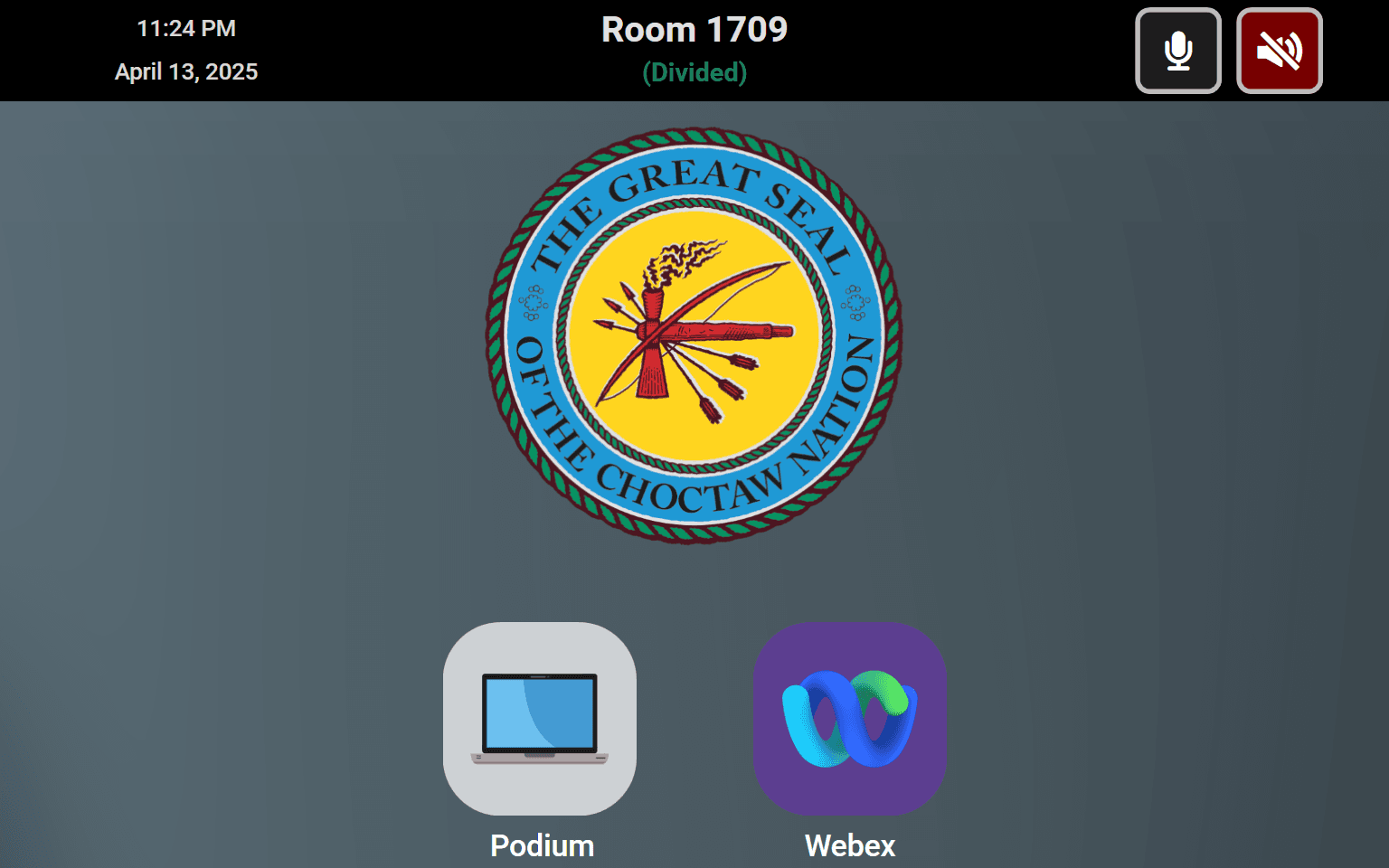

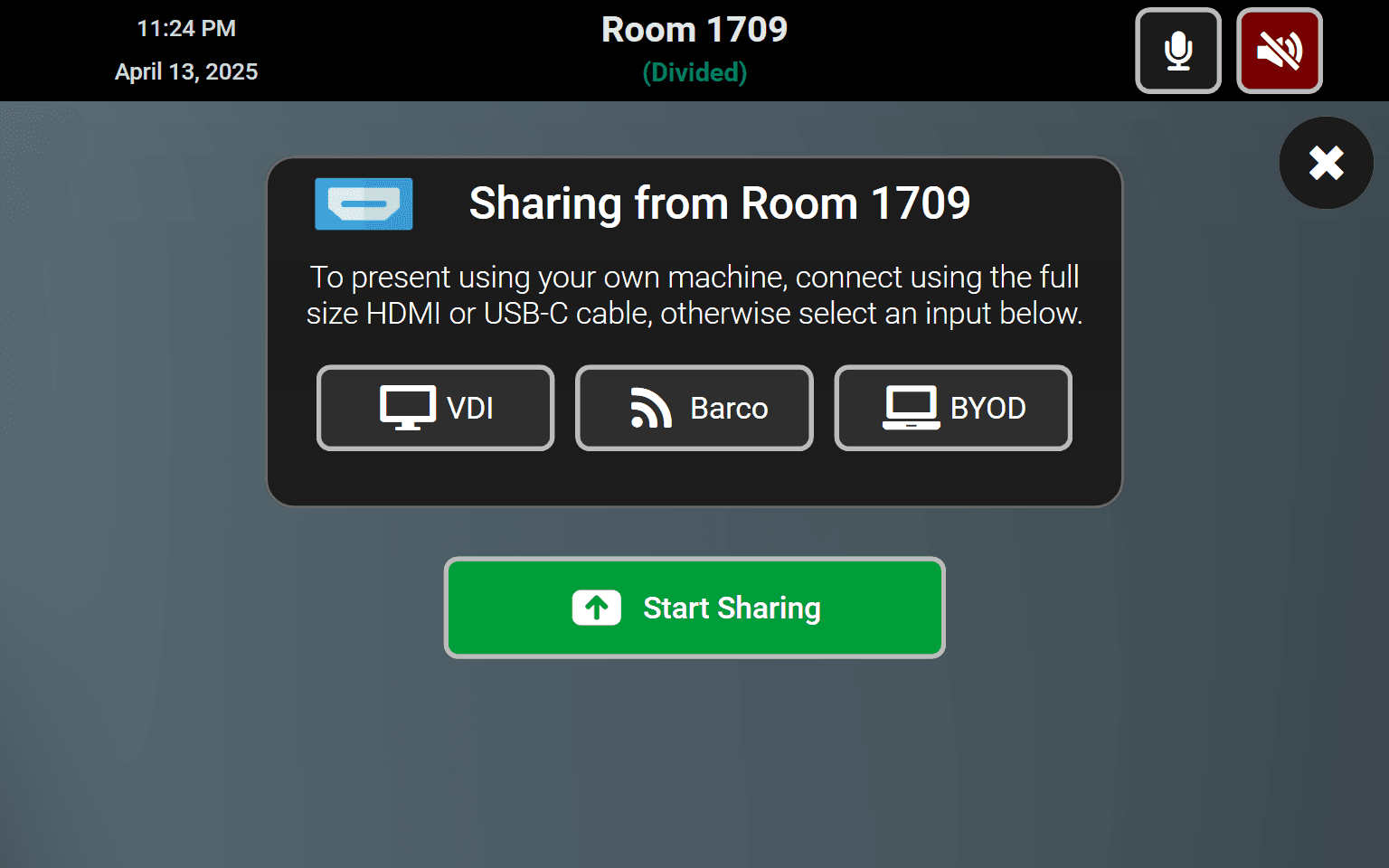

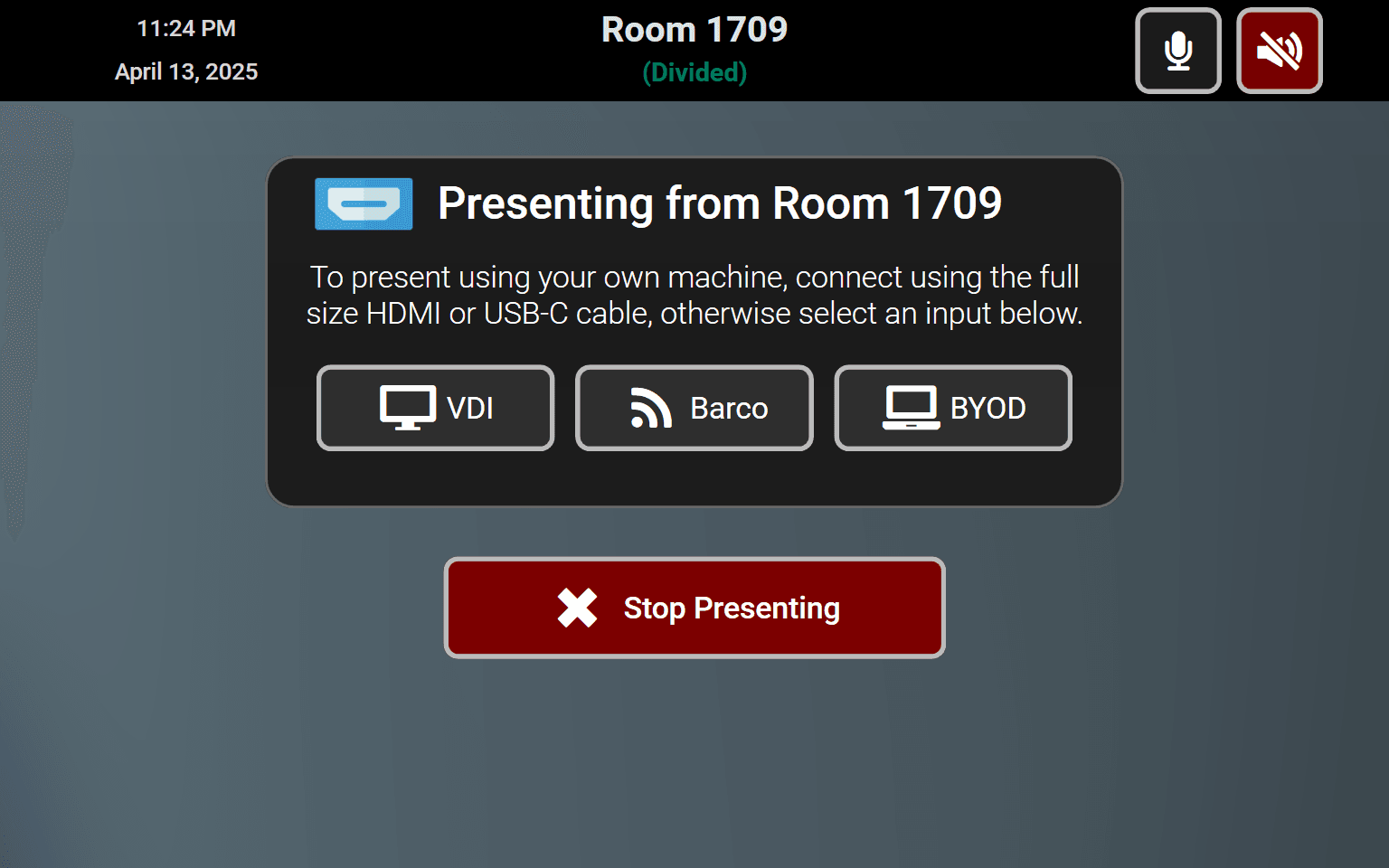

Multiple conference rooms, including a four-way divisible conference room with custom-built Cisco codec control modules including one touch dialing, room divide/combine with partition sensors, and simple to use room presets. Admin panel addition allows for advanced control over all video routing, microphone levels, and additional room configurations. Also included a standalone conference room and distributed background music system.
Q-SYS Core 110f
Corporate / Conference Room
TSC-101-G3 Touch Screens, I/O Flex, CX-Q 4K4 Amplifier, Cisco Codec Pros, Visonary Solutions 5 Series Video Endpoints, Shure MXA 910 Microphones

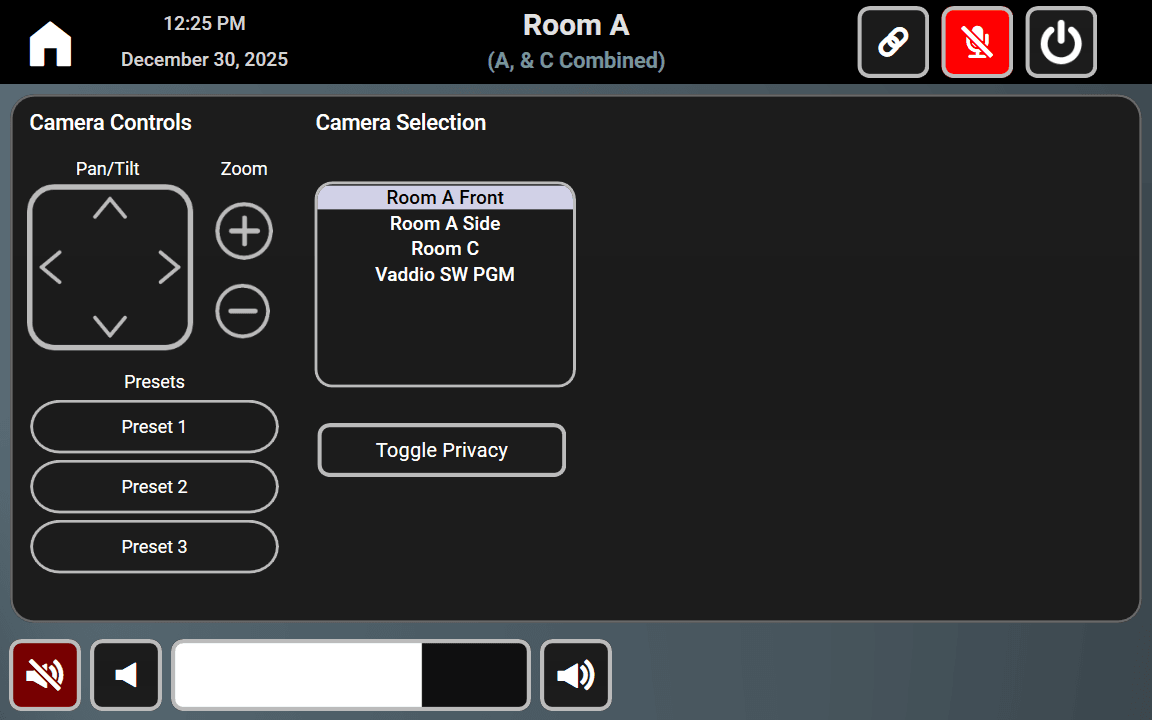

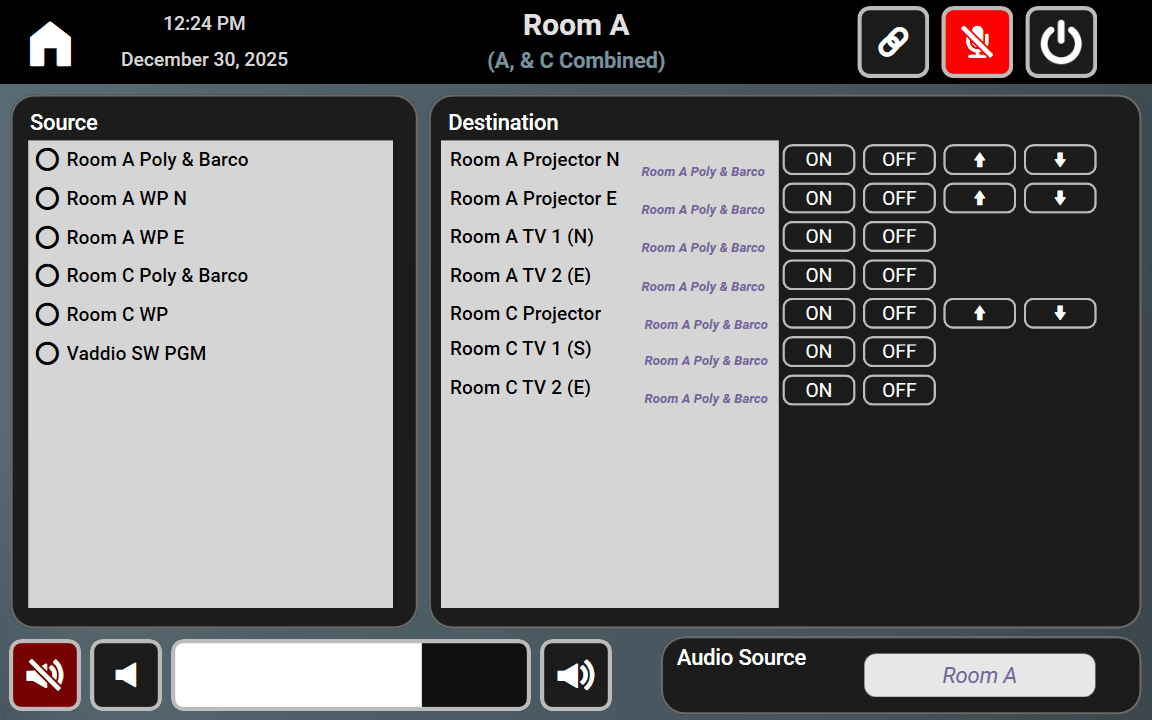

Four-Way Divisible Auditorium & Conference Room

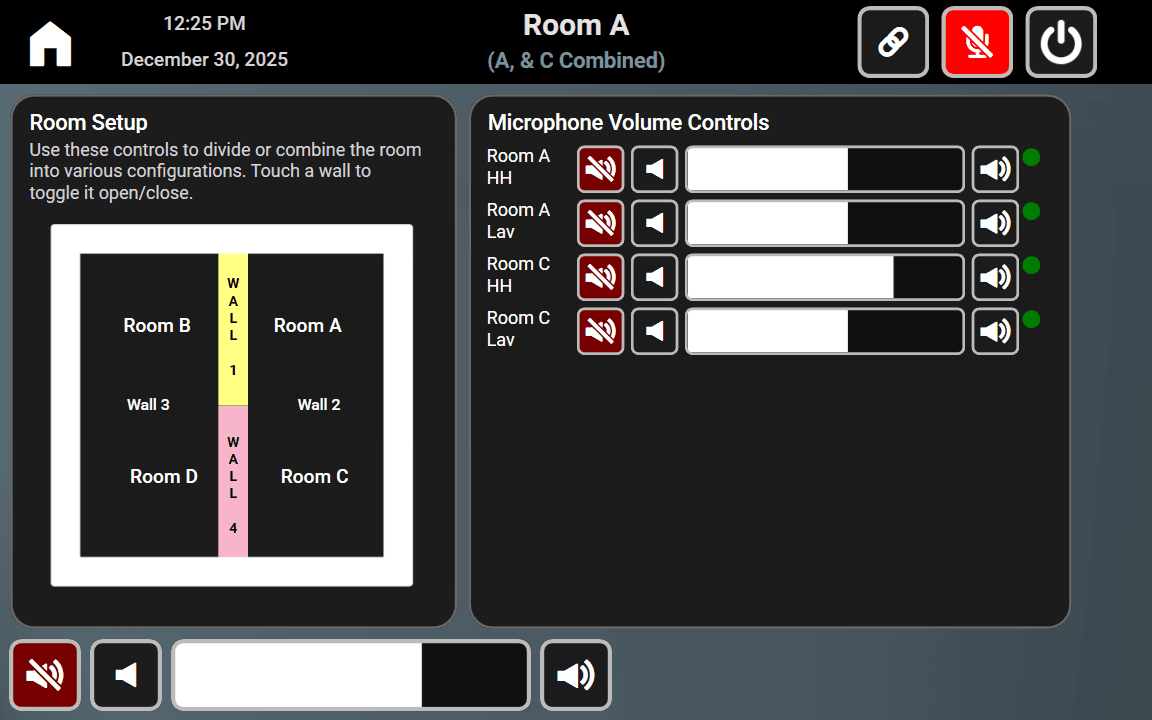

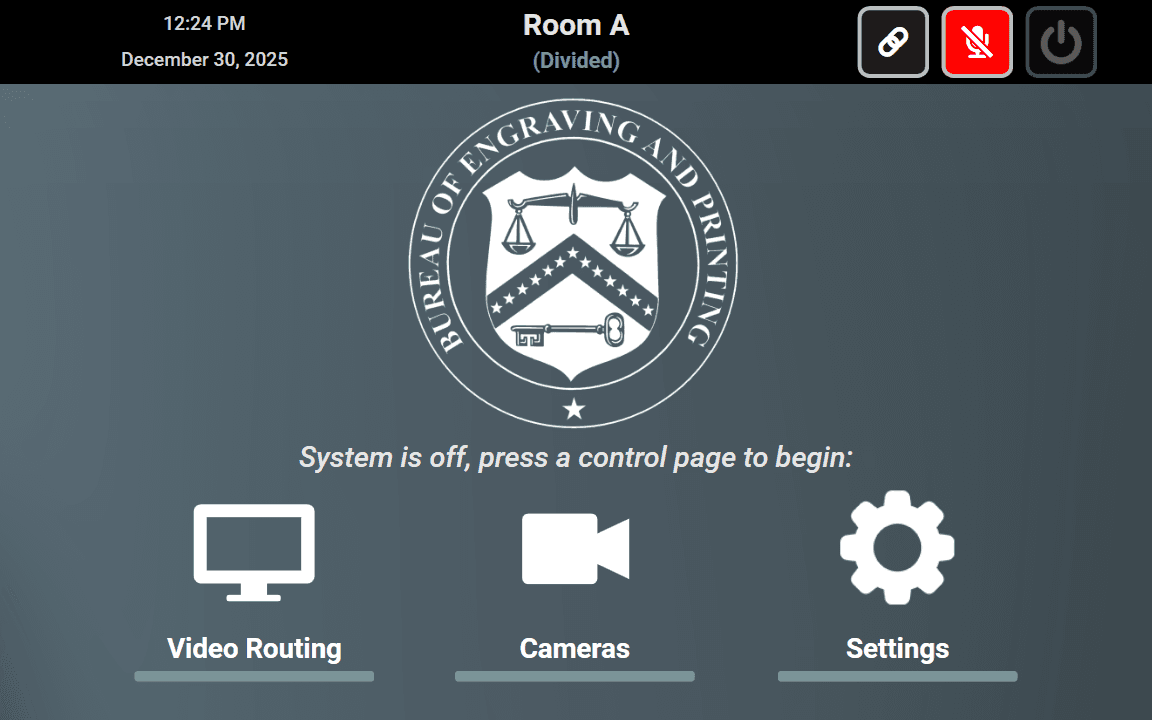

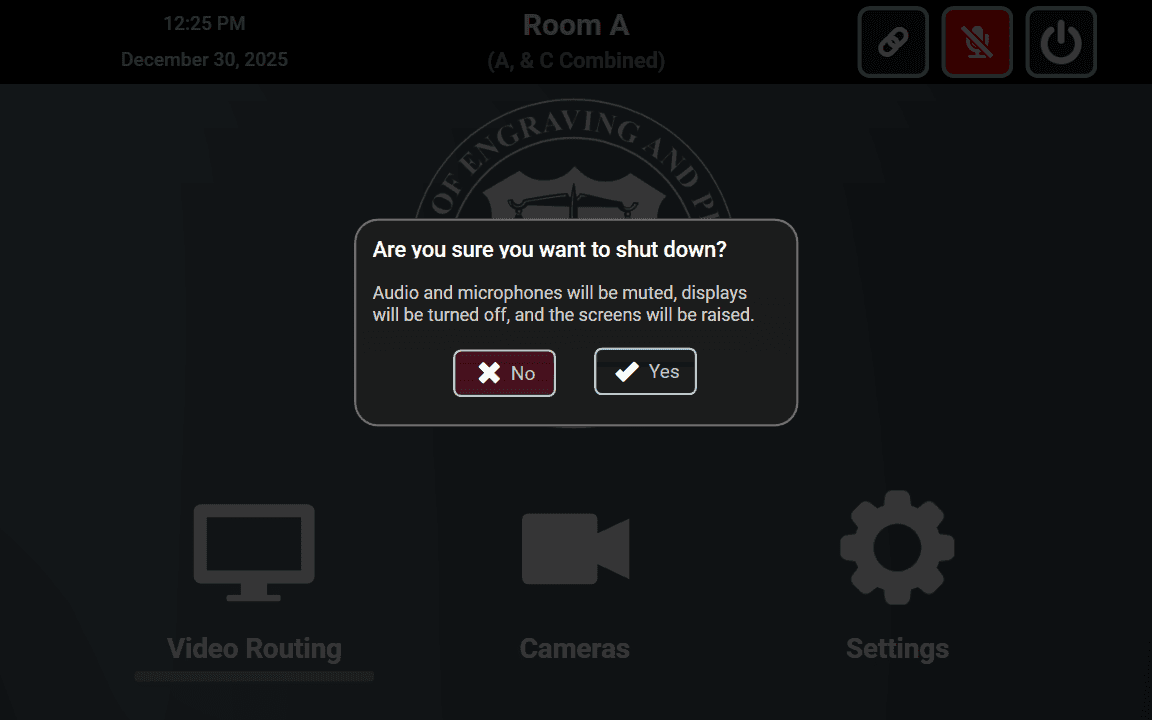

Divisible space for the Bureau of Engraving and Printing with 40+ Aurora VPX video endpoints and a custom-programmed UCI that remaps source, destination and microphone lists based on current room configurations. This room leveraged IP-based occupancy sensors, wireless microphones, and advanced camera control with both a dedicated hardware control interface and touch screen control. Poly G7500 units drive conferencing in this space.
Q-SYS Core 110f
Corporate / Conference Room
TSC-101-G3 Touch Screens, Shure MXW Wireless Microphones, Poly G7500 Video Conferencing Units, Aurora VPX Video Endpoints, Atlona Occupancy Sensors, Vaddio Cameras, Epson Projectors

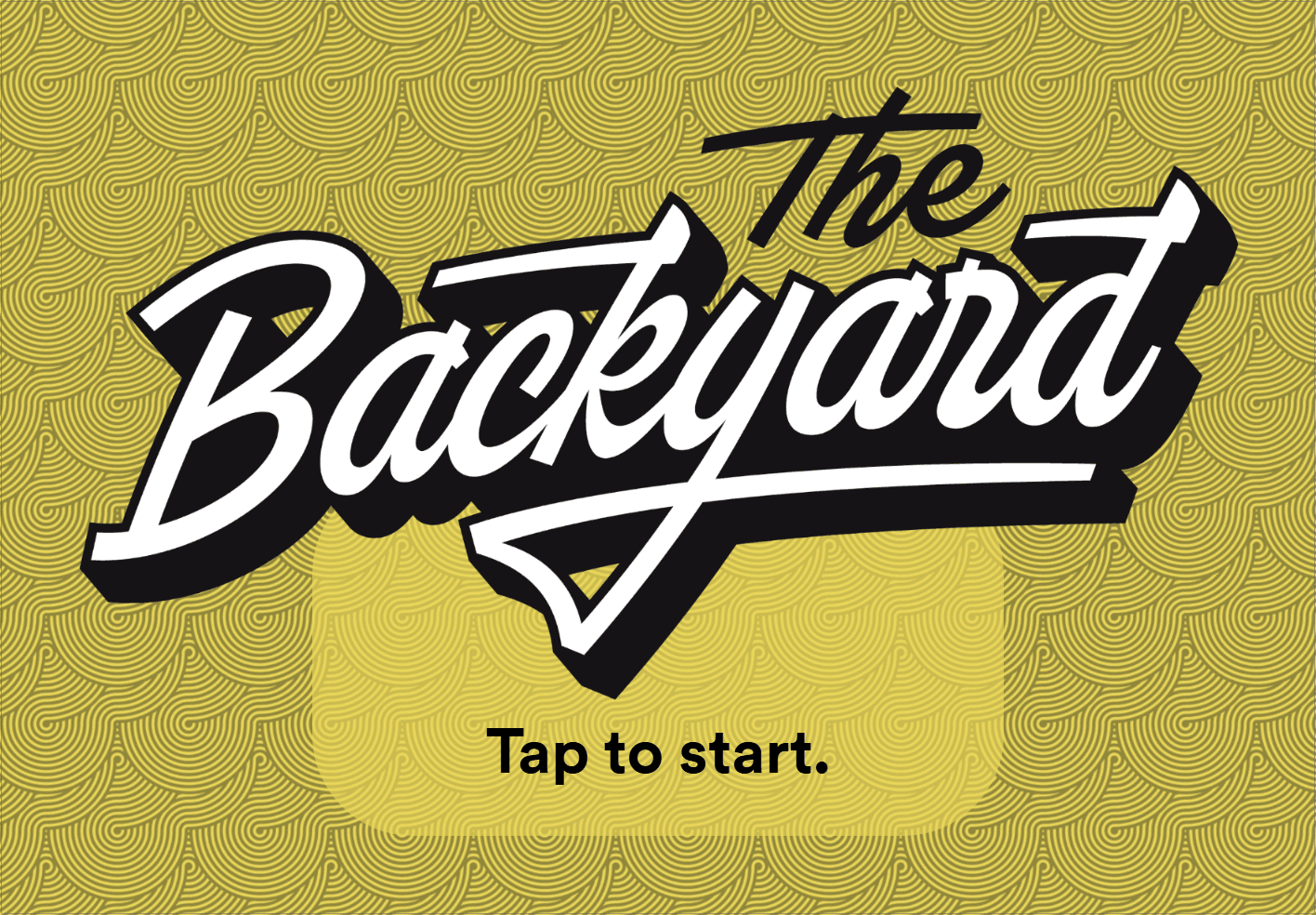

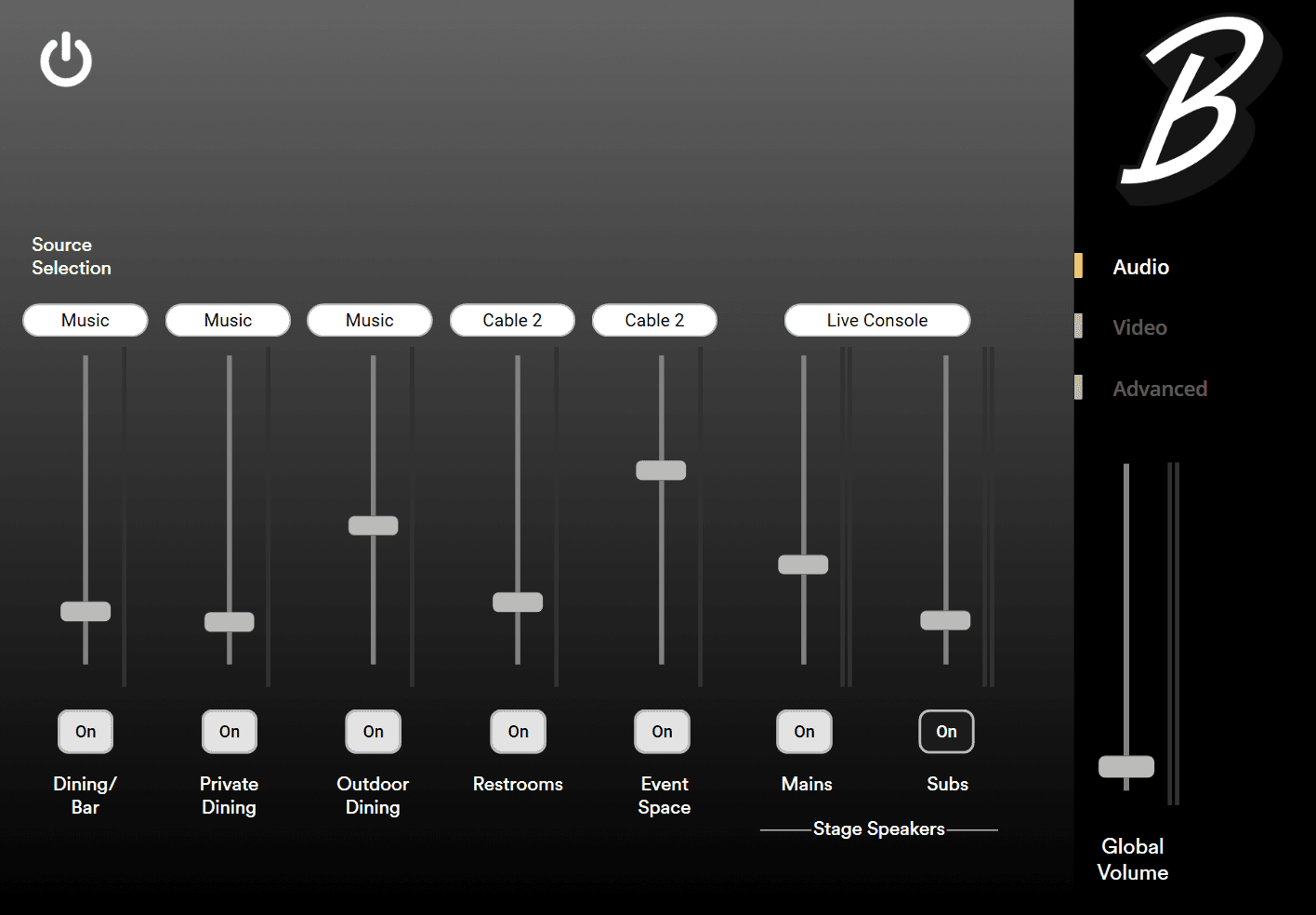

Sports Bar, Live Event & Entertainment Venue

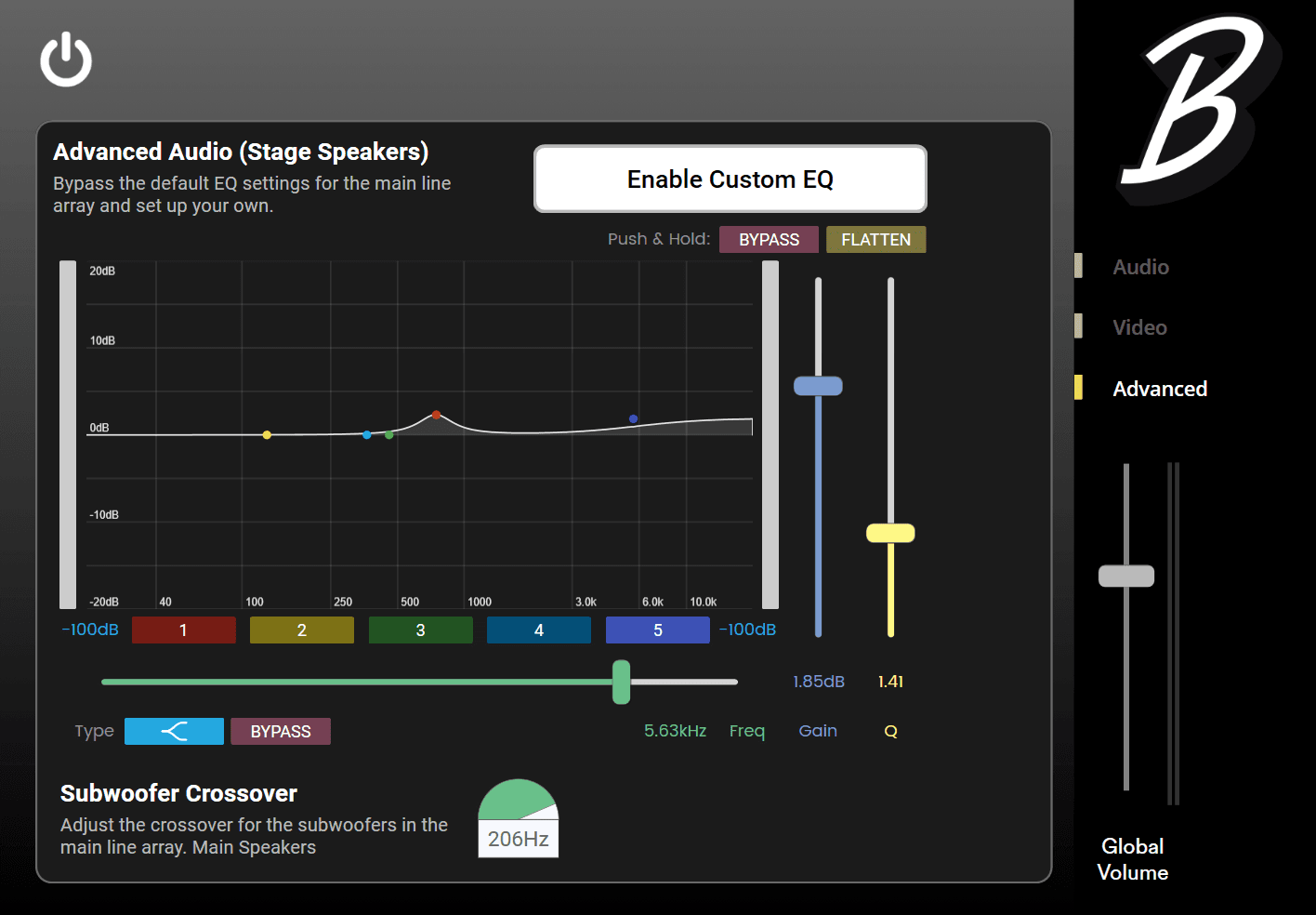

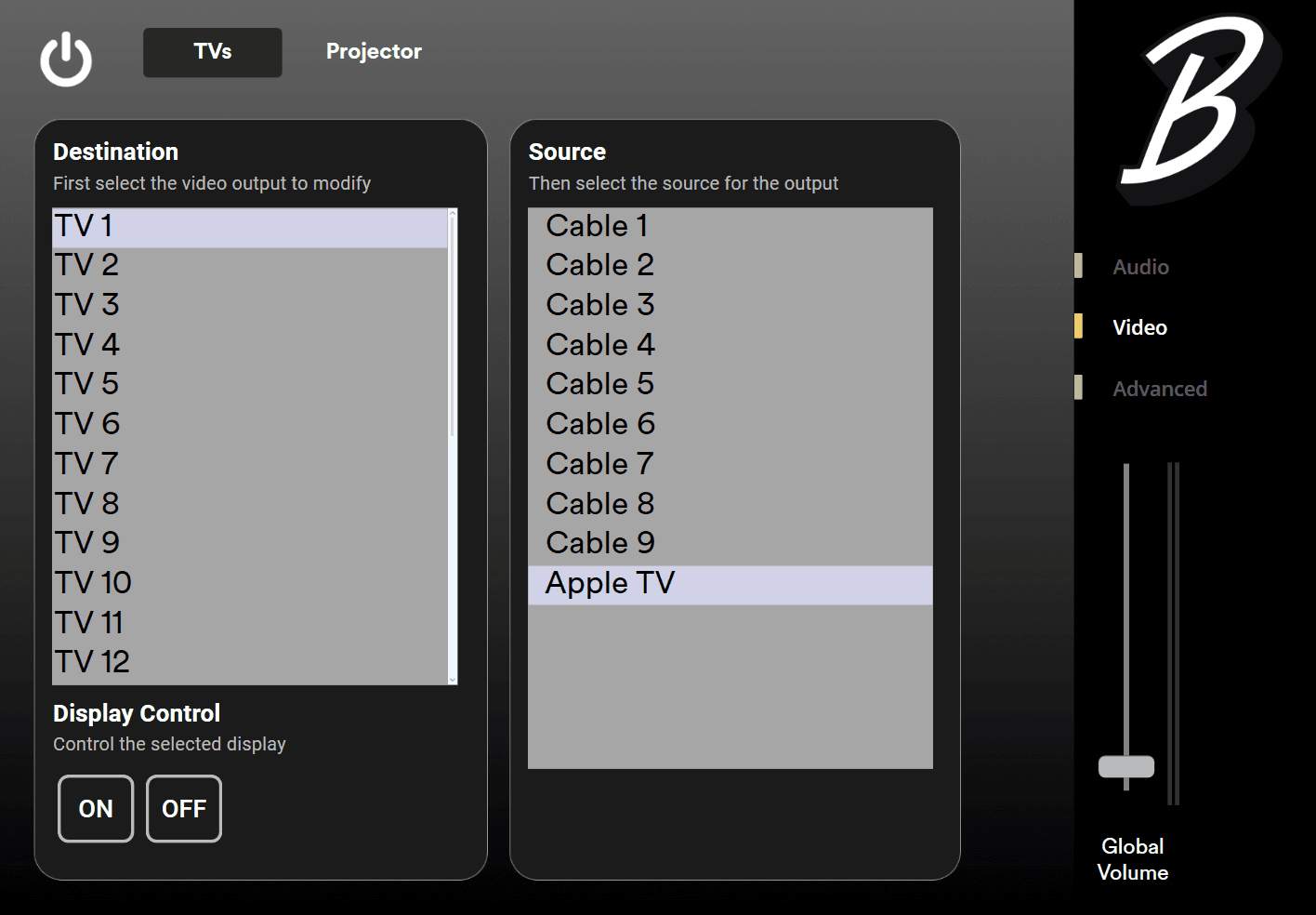

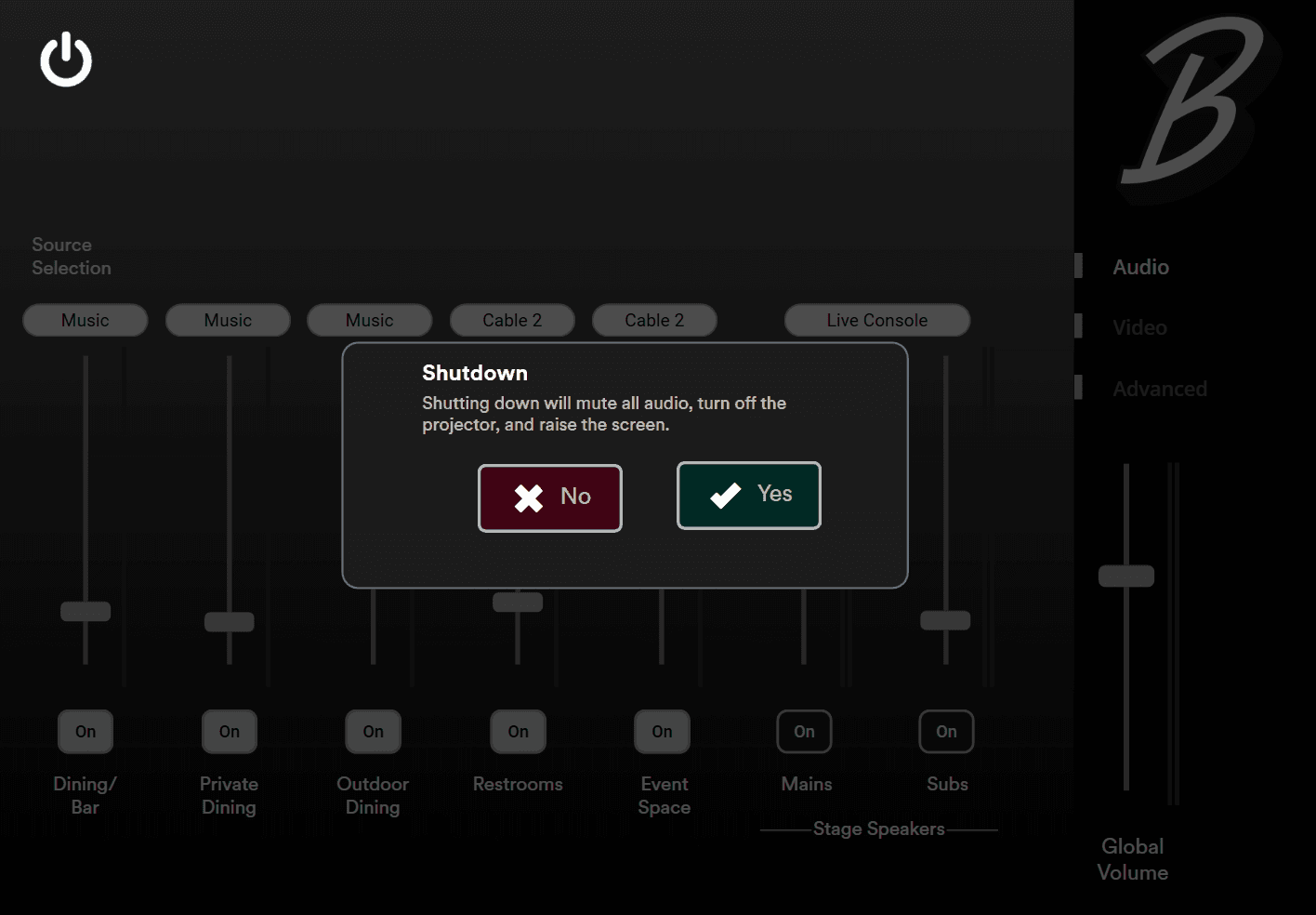

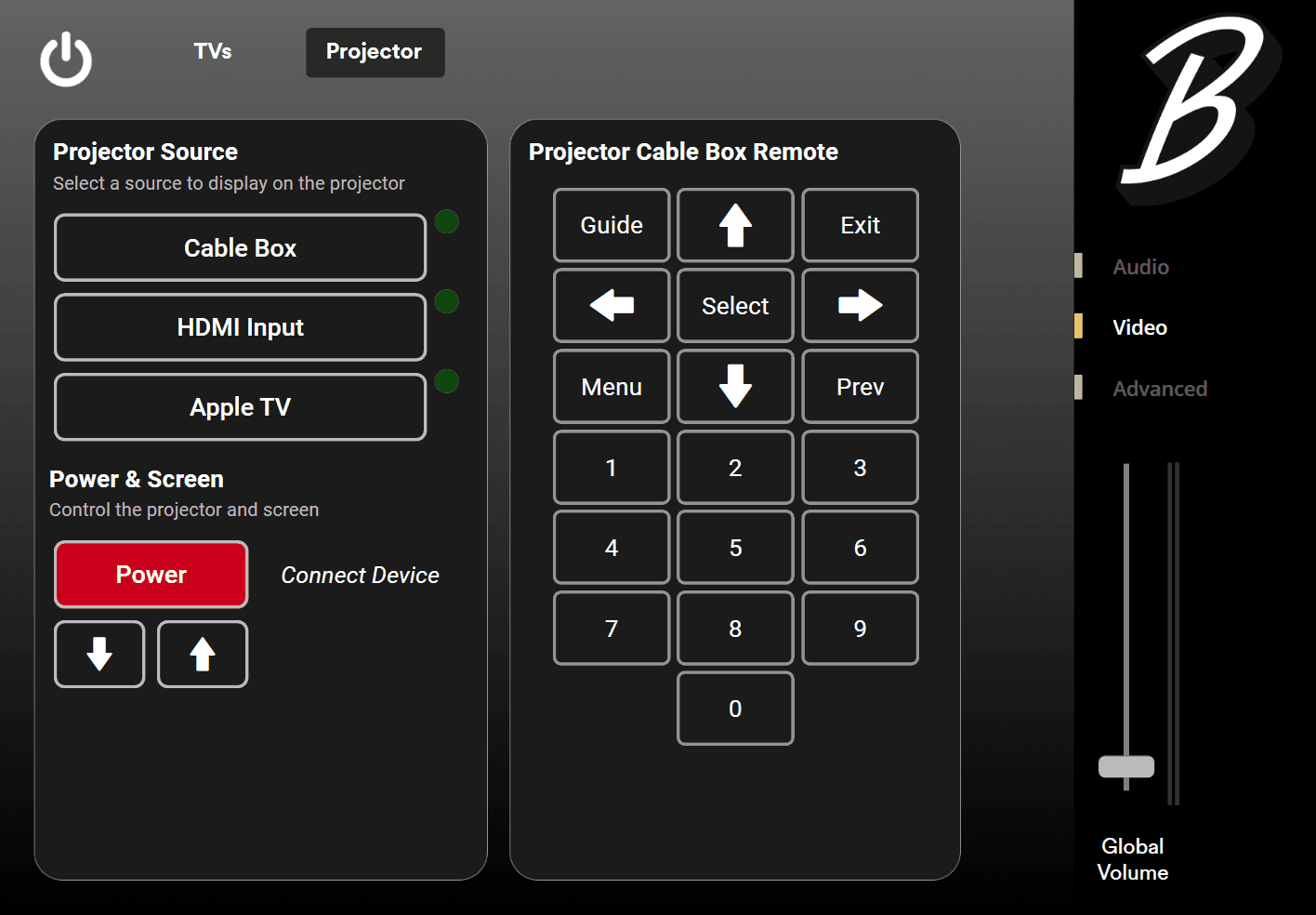

Live entertainment space with multiple zones of distributed audio including a PL-LA8 line array and stage area with custom user-controllable EQ presets right on the control interface. This venue also included control of 20+ TVs with distributed video-over-coax via automated channel selection on each individual TV (using a combination of IR and IP control modules).
Q-SYS Core 110f
Hospitality / Restaurant
iPad, CX-Q 4K8 and 8K8 Amplifiers, Video over Coax, PL-LA8 Line Array, E18 Subwoofers, and Global Cache IP2IRs
